Change Plot Toolbars

You can remove buttons and other options from the plot toolbars. You might want to remove some features so that students just learning the program won't be distracted by them. Or you might want to remove the lower plot toolbar before printing so that it doesn't appear along with the graph.

To change the toolbars for a plot,

1.	Select the plot you want to change.

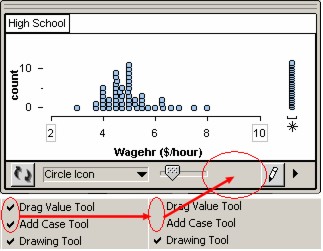

2.	Go to the Toolbars submenu of the plot's Options menu and choose the feature you want to remove (or add back).

Choosing Hide Upper Plot Toolbar or Hide Lower Plot Toolbar will remove all of the features on those toolbars at once. To restore the toolbars, choose Reset Toolbars. You can also remove features one at a time by scrolling to a checked feature and choosing it. A removed feature will appear unchecked in the menu. To restore that feature, select it again.

Note that you can remove features from only one plot at a time.
